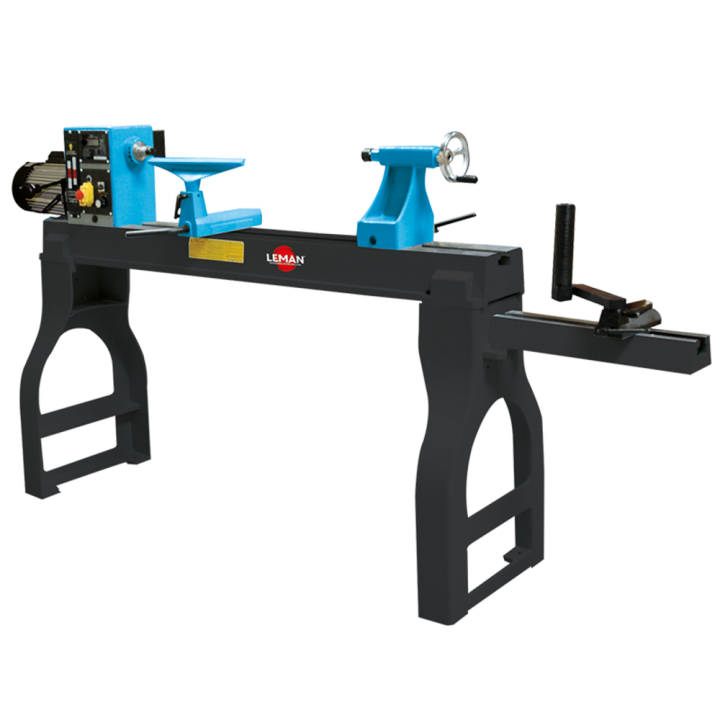

Wood lathe with electronic inverter 1200 mm

  • cast iron stand with provision for a shelve, stable and aesthetic.
  • cast iron bed drilled to be fixed on the supplied stand or on a workbench.

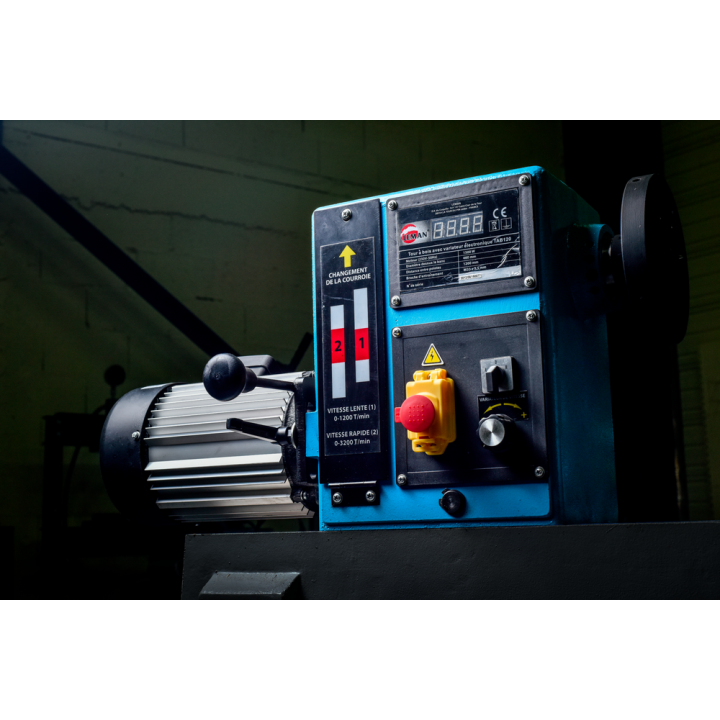

  • 2 mechanical speed ranges by changing the belt position on the pulleys, electronic inverter to adjust the speed with digital display : slow speed from 0 to 1200 rpm and fast speed from 1200 to 3200 rpm.

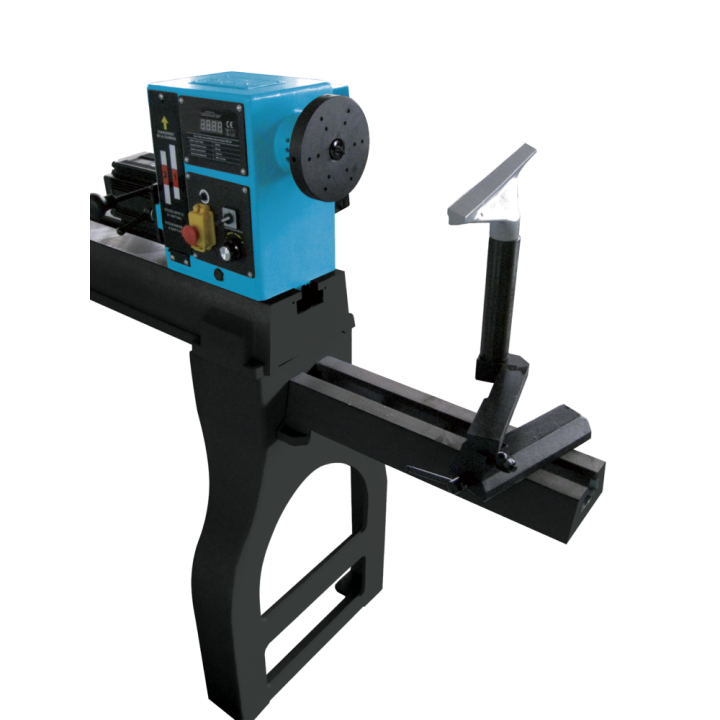

  • 300 mm articulated tool rest in cast iron with cam lock : can be used with or without the extension arm.

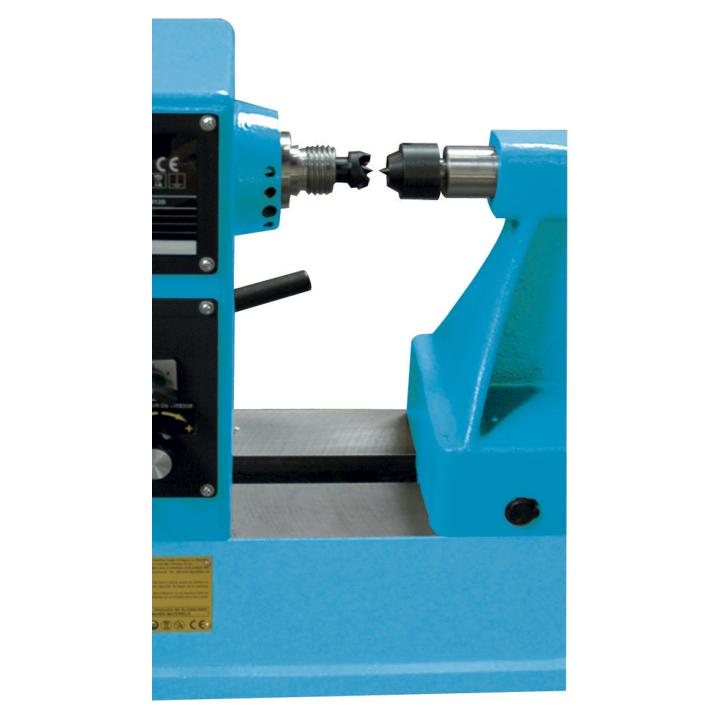

  • headstock and tailstock drilled at 10 mm to remove either the headstock spur or the tailstock live center (push-out rod supplied), and to allow the use of a drill bit.
  • headstock features 12 indexing positions.
  • diviseur multi - positions.

WOOD LATHE


Photos non contractuelles.
Sécurité d'abord : Utilisation d'outils coupants - Toujours utiliser un équipement de protection approprié - Manier avec précaution.

Caractéristique

Réf TAB120
Conditionnement 1
Colisage 1720 x 550 x 560 mm
Garantie 24
Poids net 190 kg
Poids brut 234 kg
Encombrement machine montee 1900 x 420 x 1180 mm
Reference pour pieces detachees 150200 (+ N°/ vue éclatée)
Puissance moteur (230 V - 50 Hz) 1500 W - S1
Hauteur du banc 900 mm
Nombre de vitesses 2
Vitesse de rotation 1 (variable) 0   1200 tr/min
Vitesse de rotation 2 (variable) 1200   3200 tr/min
Diviseur 12 positions
Distance entre pointes 1200 mm
Diamètre au-dessus du banc Ø 450 mm
Diamètre au-dessus de la rallonge Ø 750 mm
Longueur du support d'outil 300 mm
Broche d'entrainement M33 x 3,5 mm
Emmanchement des poupées fixe / mobile Cône Morse CM2 / CM2
Perçage de la poupée mobile Ø 10 mm
ean13 3700501704816

Fournitures et accessoires

The machine comes with a cast iron stand, tool rest, bed extension, 1 face plate, 1 drive center, 1 live center,1 indexing pin, 1 knockout rod, spanners and instruction manuals.

BAS100

BAS100

Adjustable suction nozzle with base

150200.LUN

150200.LUN

Steady rest
