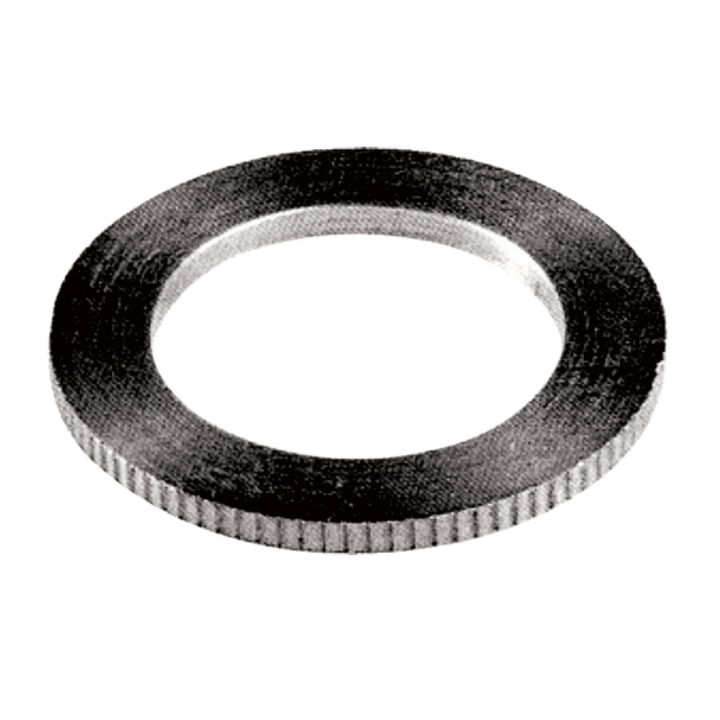

Toothed bore reduction ring

  • During use, ensure that the rings are sufficiently wide and do not move.
  • For safety reasons, only use rings in which the blade can be clamped by the flanges.
  • The ring must never be thicker than the body of the blade : refer to the dimensions indicated on the blades.
picture_as_pdf FICHE PRODUIT
16 versions

ACCESSORIES

Photos non contractuelles.
Sécurité d'abord : Utilisation d'outils coupants - Toujours utiliser un équipement de protection approprié - Manier avec précaution.

Caractéristique

Réf Conditionnement Diametre Alesage Epaisseur EAN13
9650.2015.14 1 20 15 1,4 3510789650046
9650.2016.14 1 20 16 1,4 3510789650053
9650.3020.14 1 30 20 1,4 3510789650282
9650.2520.18 1 25 20 1,8 3510789650077
9650.3015.18 1 30 15 1,8 3510789650091
9650.3016.18 1 30 16 1,8 3510789650107
9650.3018.18 1 30 18 1,8 3510789650114
9650.3020.18 1 30 20 1,8 3510789650138
9650.3022.18 1 30 22 1,8 3510789650145
9650.3025.18 1 30 25 1,8 3510789650152
9650.3026.18 1 30 25,4 1,8 3510789650169
9650.3230.18 1 32 30 1,8 3510789650183
9650.3530.18 1 35 30 1,8 3510789650206
9650.4030.20 1 40 30 2,0 3510789650213
9650.4032.20 1 40 32 2,0 3510789650220
9650.5030.25 1 50 30 2,5 3510789650237
